40°C 10%~20%RH Baking Dry Cabinet

Basic info

40°C,Baking Dry Cabinet is mainly used for storing and baking moisture sensitive SMD packages..

The heating temperature up to 40C,humidity with 10%~20%RH for low temperature baking.

It could be used as low humidity dry cabinet without heating.

With or without nitrogen purging function. All baking dry cabinets comply with J-STD-033C standard.

Humidity RH%	Stored Items
55%~45%RH	Tape, CD, camera,lens,microscope, video machine, telescope, photographs, negative, slide, miniature sheet, tapes, ancient book album, oil painting, stamps, coins, antique, CDS, LD, engineering drawing, leather goods, industrial design
45%~35%RH	Precision instruments, electronic appliance, measuring tools, precision grinding tool, half guide slide, capacitors, tungsten, EI, batteries, optical coating namely components, crystal, light source, printed circuit board, detector, charger, precision bearing, optical lens
35%~20%RH	Various reagent, samples, filter, standard products, seeds, pollen, dry flower and spices, tea product, coffee, dessert, fluorescent powder, general PCB board,wafer, short time deposit of the original device of electron
20%~10%RH	Electronic components,chemicals,LED,PCB board, crystal, SCR, and other sophisticated electronic devices
10%~1%RH	IC, BGA,SMT, copper, silver, silver plating components

Control panel

Door lock

Castors

Temperature & Humidity range: 40℃, 10%~20%RH
Display Precision: ±3.0%RH, ±1.0℃
Chamber adopts High grade 1mm and 1.2mm cold rolled steel plate, reinforced structure design,excellent load-bearing and sealing performance.
LED Digital display panels, using US import Honeywell humidity sensor; temperature and humidity independent display. Humidity can be set and has a memory function, power failure no longer set.
Surface treatment with Dupont orange line baking varnish which is strong corrosion resistance to avoid the stored goods from pollution,static shock, and oxidation..
3.2mm high intensity toughened glass.
Zinc alloy lock with air tightness,with anti-theft function.
Install ESD casters with brakes for easy move and ESD stand.
Power supply: AC power 85V~265V 50/60Hz;
With two types black surface (anti-static type) or White surface(nonanti-static type)

Model	Capacity	Inner Size (MM)	Outer Size (MM)	Packing Size (MM)	GW (KG)	Average Power (W)	Shelves	Anti-ESD (Y/N)
JYTB98	98L	446372598	448400688	540480760	32	100	1PCS	N
JYTB98F	98L	446372598	448400688	540480760	32	100	1PCS	Y
JYTB160	160L	446422848	4484501010	5405401215	47.5	150	3PCS	N
JYTB160F	160L	446422848	4484501010	5405401215	47.5	150	3PCS	Y
JYTB240	240L	5963721148	5984001310	6904901500	63	250	3PCS	N
JYTB240F	240L	5963721148	5984001310	6904901500	63	250	3PCS	Y
JYTB320	320L	898422848	9004501010	9905501270	79	300	3PCS	N
JYTB320F	320L	898422848	9004501010	9905501270	79	300	3PCS	Y

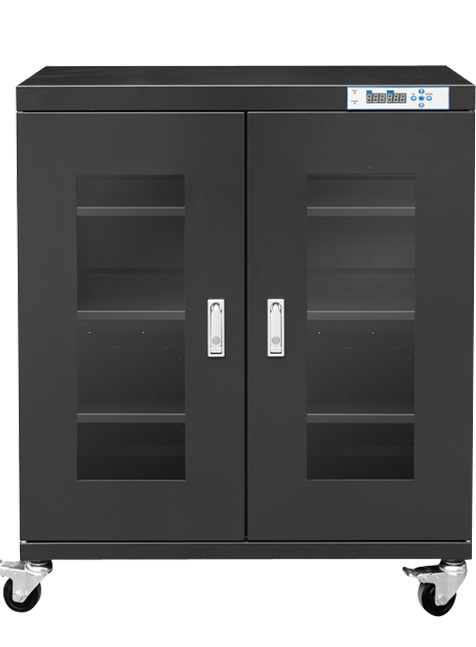

JYTB435	435L	898572848	9006001010	9906901260	95	450	3PCS	N
JYTB435F	435L	898572848	9006001010	9906901260	95	450	3PCS	Y

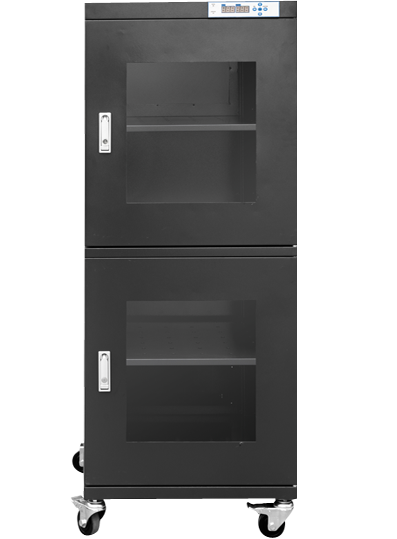

JYTB540	540L	5966821298	5987101465	6908001710	100	450	3PCS	N
JYTB540F	540L	5966821298	5987101465	6908001710	100	450	3PCS	Y
JYTB718	718L	5966821723	5987101910	6908002200	128	450	5PCS	N
JYTB718F	718L	5966821723	5987101910	6908002200	128	450	5PCS	Y
JYTB870	870L	8985721698	9006001890	10007002200	160	500	5PCS	N
JYTB870F	870L	8985721698	9006001890	10007002200	160	500	5PCS	Y

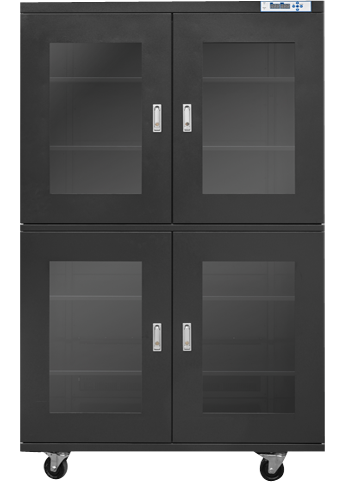

JYTB1436-4	1436L	11986821723	12007101910	13008002230	219	900	5PCS	N
JYTB1436F-4	1436L	11986821723	12007101910	13008002230	219	900	5PCS	Y

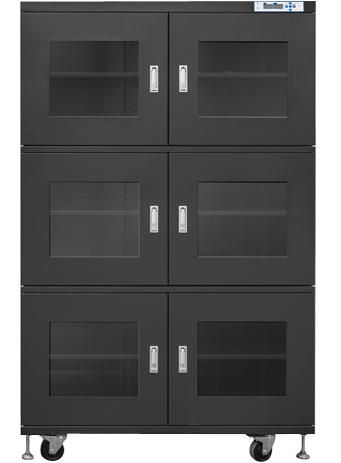

JYTB1436-6	1436L	11986821723	12007101910	13008002230	219	900	5PCS	N
JYTB1436F-6	1436L	11986821723	12007101910	13008002230	219	900	5PCS	Y
