Project Description

Basic info

Description

10%~20%RH Dry Storage Cabinet (Low Humidity Dry Storage Cabinet) is mainly used for storing moisture sensitive devices(MSDs) of level 1,2,such as IC,,SMT, electronic components, LED, PCB board, crystal, SCR and other sophisticated electronic devices.

Low Humidity Dry Storage Cabinet recovers to ≤20% RH within 30 minutes after opening the door and closed for 30 seconds.With or without nitrogen purging function. All dry cabinets comply with J-STD-033D standards.

Low Humidity Dry Storage Cabinet Equipped with high-precision temperature and humidity control, it features an RS-232 or USB port for connecting an optional data logger, allowing continuous temperature and humidity monitoring. Options, like stainless steel shelves, over humidity alarm, castors.

Dry Storage Cabinet Reference humidity for various articles storage

Humidity RH%Stored Items
55%~45%RHTape, CD, camera,lens,microscope, video machine, telescope, photographs, negative, slide, miniature sheet, tapes, ancient book album, oil painting, stamps, coins, antique, CDS, LD, engineering drawing, leather goods, industrial design
45%~35%RHPrecision instruments, electronic appliance, measuring tools, precision grinding tool, half guide slide, capacitors, tungsten, EI, batteries, optical coating namely components, crystal, light source, printed circuit board, detector, charger, precision bearing, optical lens
35%~20%RHVarious reagent, samples, filter, standard products, seeds, pollen, dry flower and spices, tea product, coffee, dessert, fluorescent powder, general PCB board,wafer, short time deposit of the original device of electron
20%~10%RHElectronic components,chemicals,LED,PCB board, crystal, SCR, and other sophisticated electronic devices
10%~1%RHIC, BGA,SMT, copper, silver, silver plating components

Dry Storage Cabinet Options:

  • Data Logger with USB port
  • Open door signal alarm
  • Over humidity signal alarm
  • Extra shelves

Dry Storage Cabinet Details

Control panel

Control panel

Door lock

Door lock

Castors

Castors

Dry Storage Cabinet Features

  • Humidity Range: 10~20%RH (adjustable)
  • Display Precision: ±3.0%RH, ±1.0℃
  • Chamber adopts High grade 1mm and 1.2mm cold rolled steel plate, reinforced structure design,excellent load-bearing and sealing performance.
  • LED Digital display panels, using US import Honeywell humidity sensor; temperature and humidity independent display. Humidity can be set and has a memory function, power failure no longer set.
  • Surface treatment with Dupont orange line baking varnish which is strong corrosion resistance to avoid the stored goods from pollution,static shock, and oxidation..
  • 3.2mm high intensity toughened glass.
  • Zinc alloy lock with air tightness,with anti-theft function.
  • Install ESD casters with brakes for easy move and ESD stand.
  • Power supply: AC power 85V~265V 50/60Hz;
  • With two types black surface (anti-static type) or White surface(nonanti-static type)

Dry Storage Cabinet Specifications

ModelCapacityInner Size
(MM)		Outer Size
(MM)		Packing Size
(MM)		GW
(KG)		Average Power
(W)		ShelvesAnti-ESD
(Y/N)

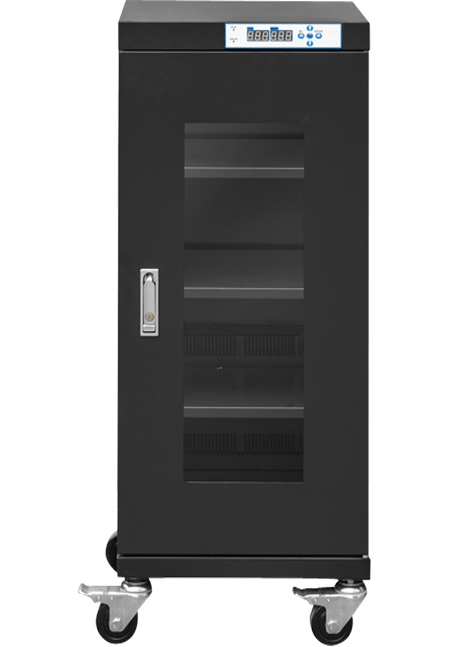

JYDB9898L446*372*598448*400*688540*480*76032181PCSN
JYDB98F98L446*372*598448*400*688540*480*76032181PCSY
JYDB160160L446*422*848448*450*1010540*540*121547.5203PCSN
JYDB160F160L446*422*848448*450*1010540*540*121547.5203PCSY
JYDB240240L596*372*1148598*400*1310690*490*150063203PCSN
JYDB240F240L596*372*1148598*400*1310690*490*150063203PCSY
JYDB320320L898*422*848900*450*1010990*550*127079203PCSN
JYDB320F320L898*422*848900*450*1010990*550*127079203PCSY
JYDB435435L898*572*848900*600*1010990*690*126095203PCSN
JYDB435F435L898*572*848900*600*1010990*690*126095203PCSY

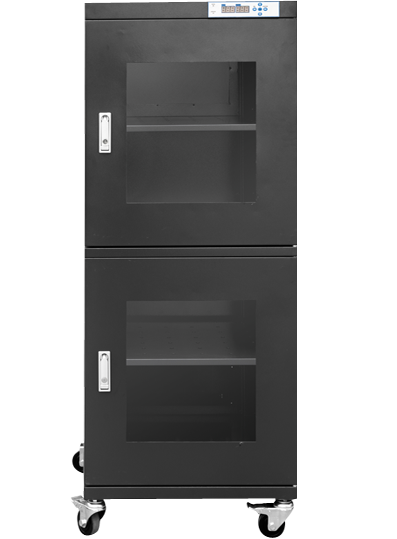

JYDB540540L596*682*1298598*710*1465690*800*1710100403PCSN
JYDB540F540L596*682*1298598*710*1465690*800*171040403PCSY

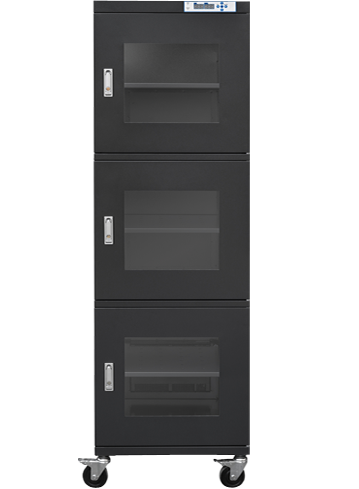

JYDB718718L596*682*1723598*710*1910690*800*2200128405PCSN
JYDB718F718L596*682*1723598*710*1910690*800*2200128405PCSY
JYDB870870L898*572*1698900*600*18901000*700*2200160405PCSN
JYDB870F870L898*572*1698900*600*18901000*700*2200160405PCSY
JYDB1436-41436L1198*682*17231200*710*19101300*800*2230219805PCSN
JYDB1436F-41436L1198*682*17231200*710*19101300*800*2230219805PCSY

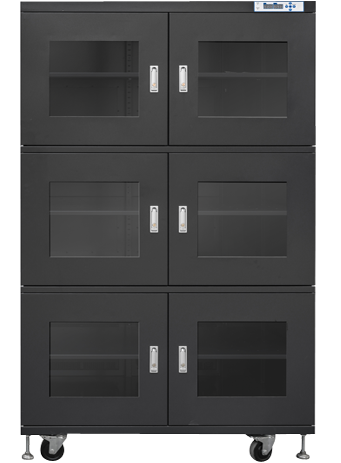

JYDB1436-61436L1198*682*17231200*710*19101300*800*2230219805PCSN
JYDB1436F-61436L1198*682*17231200*710*19101300*800*2230219805PCSY
