Project Description

Basic info

Description

1%~50%RH Dry Cabinet is mainly used for storing moisture sensitive devices(MSDs) of level 2,3,4,5,5A or 6,such as IC, BGA,SMT,PCB board,copper, silver, silver plating components,optical and electronic components, optical film and lens, crystal, SCR and other sophisticated electronic devices..

With or without nitrogen purging function. All dry cabinets comply with J-STD-033C standard.

Reference humidity for various articles storage

Humidity RH%Stored Items
55%~45%RHTape, CD, camera,lens,microscope, video machine, telescope, photographs, negative, slide, miniature sheet, tapes, ancient book album, oil painting, stamps, coins, antique, CDS, LD, engineering drawing, leather goods, industrial design
45%~35%RHPrecision instruments, electronic appliance, measuring tools, precision grinding tool, half guide slide, capacitors, tungsten, EI, batteries, optical coating namely components, crystal, light source, printed circuit board, detector, charger, precision bearing, optical lens
35%~20%RHVarious reagent, samples, filter, standard products, seeds, pollen, dry flower and spices, tea product, coffee, dessert, fluorescent powder, general PCB board,wafer, short time deposit of the original device of electron
20%~10%RHElectronic components,chemicals,LED,PCB board, crystal, SCR, and other sophisticated electronic devices
10%~1%RHIC, BGA,SMT, copper, silver, silver plating components

Options:

  • Data Logger with USB port
  • Open door signal alarm
  • Over humidity signal alarm
  • Extra shelves

Details

Control panel

Control panel

Door lock

Door lock

Castors

Castors

Features

  • Humidity Range: 1~50%RH (adjustable)
  • Display Precision: ±3.0%RH,  ±1.0℃
  • Chamber adopts High grade 1mm and 1.2mm cold rolled steel plate, reinforced structure design,excellent load-bearing and sealing performance.
  • LED Digital display panels, using US import Honeywell humidity sensor; temperature and humidity independent display. Humidity can be set and has a memory function, power failure no longer set.
  • Surface treatment with Dupont orange line baking varnish which is strong corrosion resistance to avoid the stored goods from pollution,static shock, and oxidation..
  • 3.2mm high intensity toughened glass.
  • Zinc alloy lock with air tightness,with anti-theft function.
  • Install ESD casters with brakes for easy move and ESD stand.
  • Power supply: AC power 85V~265V 50/60Hz;
  • With two types black surface (anti-static type) or White surface(nonanti-static type)

Specifications

ModelCapacityInner Size
(MM)		Outer Size
(MM)		Packing Size
(MM)		GW
(KG)		Average Power
(W)		ShelvesAnti-ESD
(Y/N)

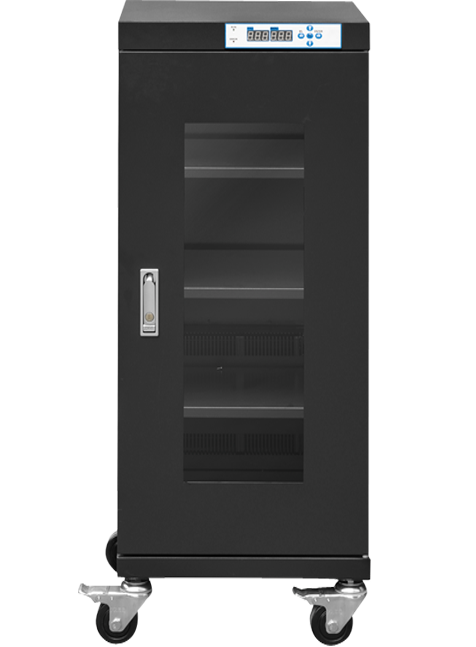

JYDL160160L446*422*848448*450*1010540*540*121547.5203PCSN
JYDL160F160L446*422*848448*450*1010540*540*121547.5203PCSY
JYDL240240L596*372*1148598*400*1310690*490*150063203PCSN
JYDL240F240L596*372*1148598*400*1310690*490*150063203PCSY
JYDL320320L898*422*848900*450*1010990*550*127079203PCSN
JYDL320F320L898*422*848900*450*1010990*550*127079203PCSY
JYDL435435L898*572*848900*600*1010990*690*126095403PCSN
JYDL435F435L898*572*848900*600*1010990*690*126095403PCSY

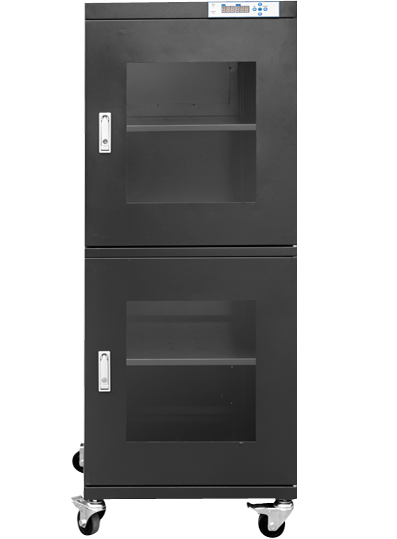

JYDL540540L596*682*1298598*710*1465690*800*1710100603PCSN
JYDL540F540L596*682*1298598*710*1465690*800*1710100603PCSY

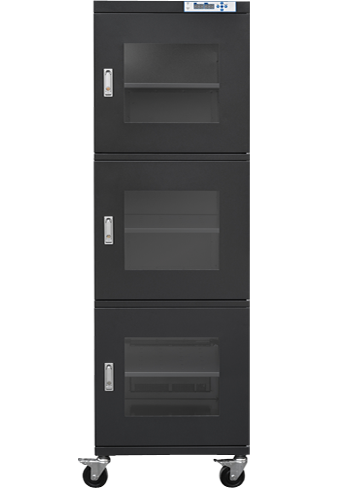

JYDL718718L596*682*1723598*710*1910690*800*2200128805PCSN
JYDL718F718L596*682*1723598*710*1910690*800*2200128805PCSY
JYDL870870L898*572*1698900*600*18901000*700*2200160805PCSN
JYDL870F870L898*572*1698900*600*18901000*700*2200160805PCSY

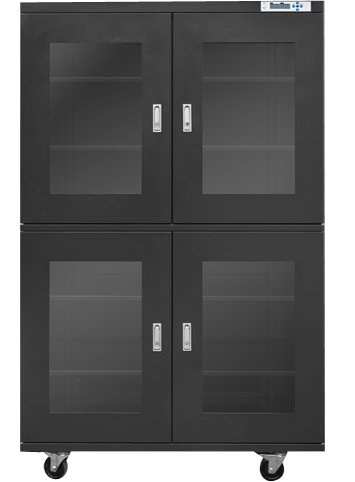

JYDL1436-41436L1198*682*17231200*710*19101300*800*22302191205PCSN
JYDL1436F-41436L1198*682*17231200*710*19101300*800*22302191205PCSY

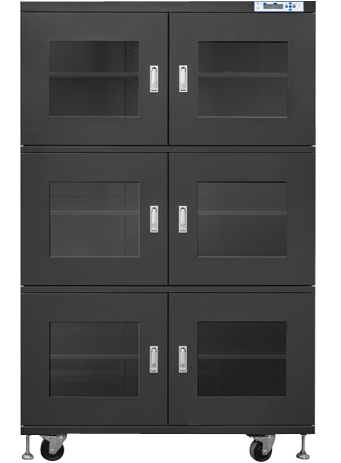

JYDL1436-61436L1198*682*17231200*710*19101300*800*22302191205PCSN
JYDL1436F-61436L1198*682*17231200*710*19101300*800*22302191205PCSY
Ask for price
