Description
1%~10%RH Desiccant Dry Cabinet (Ultra low Humidity Desiccant Dry Cabinet) is mainly used for storing moisture sensitive devices(MSDs) of level 4,5,5A or 6,such as IC, BGA,SMT, copper, silver, silver plating components,optical and electronic components, optical film and lens, crystal, SCR and other sophisticated electronic devices.
Desiccant Dry Cabinet recovers to ≤10% RH within 30 minutes after opening the door and closed for 30 seconds.With or without nitrogen purging function. All dry cabinets comply with J-STD-033D standards.
Desiccant Dry Cabinet is equipped with high-precision temperature and humidity control, it features an RS-232 or USB port for connecting an optional data logger, allowing continuous temperature and humidity monitoring. Options, like stainless steel shelves, over humidity alarm, castors.
Desiccant Dry Cabinet Reference humidity for various articles storage
| Humidity RH% | Stored Items |
| 55%~45%RH | Tape, CD, camera,lens,microscope, video machine, telescope, photographs, negative, slide, miniature sheet, tapes, ancient book album, oil painting, stamps, coins, antique, CDS, LD, engineering drawing, leather goods, industrial design |
| 45%~35%RH | Precision instruments, electronic appliance, measuring tools, precision grinding tool, half guide slide, capacitors, tungsten, EI, batteries, optical coating namely components, crystal, light source, printed circuit board, detector, charger, precision bearing, optical lens |
| 35%~20%RH | Various reagent, samples, filter, standard products, seeds, pollen, dry flower and spices, tea product, coffee, dessert, fluorescent powder, general PCB board,wafer, short time deposit of the original device of electron |
| 20%~10%RH | Electronic components,chemicals,LED,PCB board, crystal, SCR, and other sophisticated electronic devices |
| 10%~1%RH | IC, BGA,SMT, copper, silver, silver plating components |
Desiccant Dry Cabinet Options:
- Data Logger with USB port
- Open door signal alarm
- Over humidity signal alarm
- Extra shelves
Desiccant Dry Cabinet Details
Control panel
Door lock
Castors
Desiccant Dry Cabinet Features
- Humidity Range: 1~10%RH (automatic)
- Display Precision: ±3.0%RH, ±1.0℃
- Chamber adopts High grade 1mm and 1.2mm cold rolled steel plate, reinforced structure design,excellent load-bearing and sealing performance.
- LED Digital display panels, using US import Honeywell humidity sensor; temperature and humidity independent display. Humidity can be set and has a memory function, power failure no longer set.
- Surface treatment with Dupont orange line baking varnish which is strong corrosion resistance to avoid the stored goods from pollution,static shock, and oxidation..
- 3.2mm high intensity toughened glass.
- Zinc alloy lock with air tightness,with anti-theft function.
- Install ESD casters with brakes for easy move and ESD stand.
- Power supply: AC power 85V~265V 50/60Hz;
- With two types black surface (anti-static type) or White surface(nonanti-static type)
Desiccant Dry Cabinet Specifications
| Model | Capacity | Inner Size (MM) | Outer Size (MM) | Packing Size (MM) | GW (KG) | Average Power (W) | Shelves | Anti-ESD (Y/N) |
|---|---|---|---|---|---|---|---|---|
| JYDC98 | 98L | 446*372*598 | 448*400*688 | 540*480*760 | 32 | 18 | 1PCS | N |
| JYDC98F | 98L | 446*372*598 | 448*400*688 | 540*480*760 | 32 | 18 | 1PCS | Y |

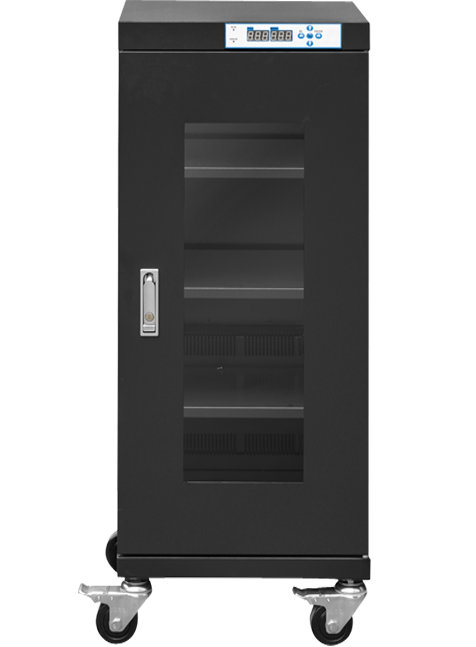

| JYDC160 | 160L | 446*422*848 | 448*450*1010 | 540*540*1215 | 47.5 | 20 | 3PCS | N |
| JYDC160F | 160L | 446*422*848 | 448*450*1010 | 540*540*1215 | 47.5 | 20 | 3PCS | Y |
| JYDC240 | 240L | 596*372*1148 | 598*400*1310 | 690*490*1500 | 63 | 20 | 3PCS | N |
| JYDC240F | 240L | 596*372*1148 | 598*400*1310 | 690*490*1500 | 63 | 20 | 3PCS | Y |
| JYDC320 | 320L | 898*422*848 | 900*450*1010 | 990*550*1270 | 79 | 40 | 3PCS | N |
| JYDC320F | 320L | 898*422*848 | 900*450*1010 | 990*550*1270 | 79 | 40 | 3PCS | Y |

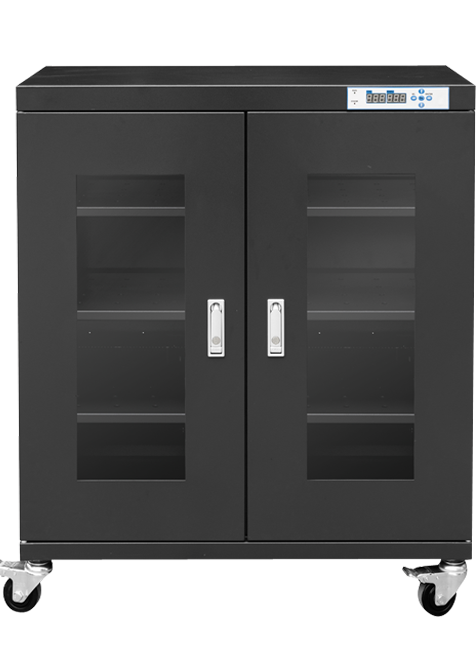

| JYDC435 | 435L | 898*572*848 | 900*600*1010 | 990*690*1260 | 95 | 40 | 3PCS | N |
| JYDC435F | 435L | 898*572*848 | 900*600*1010 | 990*690*1260 | 95 | 40 | 3PCS | Y |
| JYDC540 | 540L | 596*682*1298 | 598*710*1465 | 690*800*1710 | 100 | 60 | 3PCS | N |
| JYDC540F | 540L | 596*682*1298 | 598*710*1465 | 690*800*1710 | 100 | 60 | 3PCS | Y |
| JYDC718 | 718L | 596*682*1723 | 598*710*1910 | 690*800*2200 | 128 | 60 | 5PCS | N |
| JYDC718F | 718L | 596*682*1723 | 598*710*1910 | 690*800*2200 | 128 | 60 | 5PCS | Y |
| JYDC870 | 870L | 898*572*1698 | 900*600*1890 | 1000*700*2200 | 160 | 40 | 5PCS | N |
| JYDC870F | 870L | 898*572*1698 | 900*600*1890 | 1000*700*2200 | 160 | 80 | 5PCS | Y |

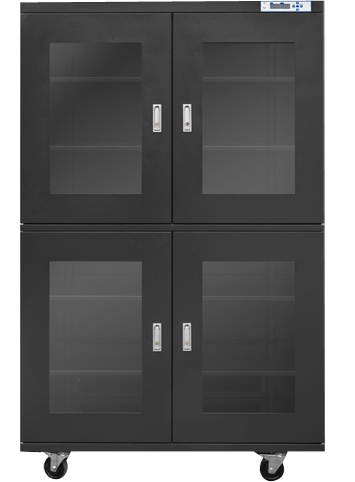

| JYDC1436-4 | 1436L | 1198*682*1723 | 1200*710*1910 | 1300*800*2230 | 219 | 120 | 5PCS | N |
| JYDC1436F-4 | 1436L | 1198*682*1723 | 1200*710*1910 | 1300*800*2230 | 219 | 120 | 5PCS | Y |

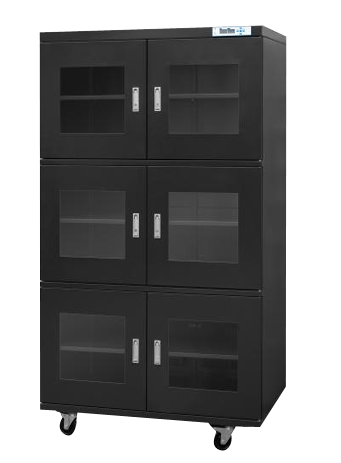

| JYDC1436-6 | 1436L | 1198*682*1723 | 1200*710*1910 | 1300*800*2230 | 219 | 120 | 5PCS | N |
| JYDC1436F-6 | 1436L | 1198*682*1723 | 1200*710*1910 | 1300*800*2230 | 219 | 120 | 5PCS | Y |
